How to Seal Air Barrier Penetrations

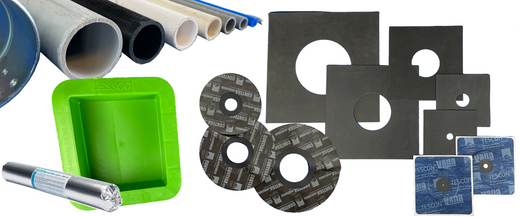

In even the tightest building envelope there will always be intentional holes in the air barrier. Common penetrations are plumbing pipes, vent pipes, wire penetrations, and outlet boxes. 475 offers a wide variety of simple and effective gaskets from Pro Clima for airsealing and waterproofing around wire and pipe penetrations. The Pro Clima naming conventions are displayed here:

KAFLEX = wire penetrations
ROFLEX = pipe penetrations
SOLIDO = integrated CONTEGA SOLIDO tape
Number = approximate size of pipe diameter in millimeters

You’ll notice the KAFLEX gasket, ROFLEX 20 gasket, and all three of the ROFLEX SOLIDO gaskets have integrated tape, while the ROFLEX 30 through 200 are simply square-edged pieces of EPDM and require tape to be applied. We recommend TESCON VANA tape to apply these ROFLEX gaskets, which is the tape integrated into the ROFLEX 20 and KAFLEX. The ROFLEX SOLIDO line of gaskets are integrated with round pieces of airtight, watertight, vapor-open CONTEGA SOLIDO tape, which is fleece-backed so that it can hold a plaster and has an adhesive that bonds to masonry without need for a primer.

Advantages of using gaskets for sealing around wires and pipes:

(1) The wire/pipe can be adjusted after the gasket is installed. Gaskets are made of EPDM membrane with holes cut smaller than the penetration diameter so there’s a friction fit around the wire/pipe.

(2) Gasket seals are easy to visually inspect for proper install.

Regardless of the gasket, it’s important to leave space around the wire/pipe penetration to allow the “elbow-room” for taping. If the gasket lands next to a wall, framing member or service cavity batten, you may need to consider sequencing of those elements to allow for easy application of the gasket onto a surface that is free and clear.

Specifying The Right Gaskets

This table shows what size penetration the gasket seals, as well as the outer dimensions of the gasket.

GASKET SIZING AND DIMENSIONS
Gasket Name Range of Pipe Sizes Measuring Outside Diameter ∅: inch (mm) Gasket Outer Edge Diameter: inch (mm)
43/4” ↔ 57/8
(120 ↔ 150mm)
Diameter: 115/8
(296mm)
31/2” ↔ 43/4
(90 ↔ 120mm)
Diameter: 93/4
(250mm)

2” ↔ 31/8
(50 ↔ 80mm)
Diameter: 77/8
(200mm)
Gasket Name Range of Pipe Sizes Measuring Outside Diameter ∅: inch (mm) Gasket Outer Edge Dimension: inch (mm)
63/4” ↔ 83/4
(170 ↔ 220mm)
117/8”x 117/8
(300mm x 300mm)

43/4” ↔ 63/4"
(120 ↔ 170mm)
93/4” x 93/4
(250mm x 250mm)
4” ↔ 43/4
(100 ↔ 120mm)
77/8” x 77/8
(200mm x 200mm)
2” ↔ 31/2
(50 ↔ 90mm)
51/2” x 51/2
(140mm x 140mm)
13/16" ↔ 2”
(30 ↔ 50mm)
51/2” x 51/2
(140mm x 140mm)
5/8” ↔ 13/16"
(15 ↔ 30mm)
56/8" x 56/8"
(145mm x 145mm)
1/4” ↔ 1/2
(5 ↔ 12mm)
56/8" x 56/8"
(145mm x 145mm)

In the case of unique penetration sizes, EPDM gaskets can be custom cut on-site. Installers can trace the inner circle of the pipe penetration and then cut this shape out of a piece of EPDM membrane (pond liner). Typically, cutting the pipe diameter from the inner shape will create a friction fit on the outer diameter when installed, but this should be verified on-site.

Liquid-Applied Airsealing

Another option for airsealing around wire and pipe penetrations is using VISCONN liquid-applied air barrier to airseal the edges and joints between the air barrier and the wire or pipe. The substrates should be stable for this application and the wire or pipe cannot be adjusted later, as they can when using a gasket. VISCONN can be sprayed on or brush-applied. Depending on the gap between the penetration and the air barrier substrate, it can be best to use VISCONN FIBRE (spans gaps up to ¾”) for this application since it’s designed to bridge larger gaps than the standard VISCONN (spans gaps up to ⅛“). VISCONN should be liberally applied around the penetration as well as the air barrier and turn up the wire/pipe and air barrier at least a ½”. Greater care should be taken to inspect liquid-applied airsealing because this approach is at greater risk for damage over its lifetime.

VISCONN can be installed over any Pro Clima tapes or and the adhesive used on Pro Clima tapes can be installed over VISCONN. For best results, redundancy - using both tape and liquid-applied air seal - will ensure the greatest results.

Using Tape In a Pinch

TESCON VANA tape can be used to airseal around wires and pipes. For wires it’s a quick and simple install: pinching tape on either side of the wire penetration and apply the tape to the substrate. This is reliable and waterproof, but the downside to this method is that your wire is no longer moveable, the way it would be using a KAFLEX gasket.

Taping around pipe penetrations can be a difficult install. There needs to be small patches of tape overlapping and feathering around the pipe.

For projects with an interior air barrier (such as INTELLO PLUS or INTELLO X) it’s best practice to use a service cavity to limit the number of interior air barrier penetrations. See this blog post on the importance of a service cavity.

No Service Cavity? Plan For Every Outlet.

For interior air barrier projects without a service cavity there will be air barrier penetrations at electrical outlet boxes and/or ceiling lights. For these penetrations it’s best to locate the electrical outlet within an airtight outlet box – pinching tape to airseal the wire penetration into the airtight box and then taping the edges of the airtight box to the air barrier. 475 offers the LESSCO box for this application. The LESSCO is a hard plastic box that can be used on the interior or exterior.

Step-By-Step Installation of LESSCO Box:

1 - The LESSCO utility box
2 - Diagonal supports don't protrude from one side of the LESSCO box -- this side can be installed flush to the framing
3 - Drill holes in the side of the LESSCO for wires entering and leaving the LESSCO box
4 - Drilling holes in the side of the LESSCO box for wires
5 - Trace the inner rectangle of the LESSCO box onto the location of Intello that it'll be installed
6 - Cutting out the Intello for the LESSCO box to be placed
7 - Intello has been removed for the install of the LESSCO box
8 - Feed wires into the LESSCO box
9 - Give enough extra length of wire for outlet install
10 - Use two small pieces of TESCON VANA tape to pinch tape and seal around wire penetrations
11 - Use two small pieces of TESCON VANA tape to pinch tape and seal around each wire penetration
12 - Airseal around wire penetration with TESCON VANA
13 - Install LESSCO box into location
14 - Placing LESSCO box into location
15 - Tape the flanges of the LESSCO box to the Intello on all 4 sides
16 - Pressure activate the TESCON VANA's adhesive with a PRESSFIX
17 - Tape the flanges of the LESSCO box to the Intello on all 4 sides
18 - Tape the flanges of the LESSCO box to the Intello on all 4 sides
19 - Tape the flanges of the LESSCO box to the Intello on all 4 sides
20 - Pressure activate the TESCON VANA's adhesive with a PRESSFIX
21 - Locate outlet box within the LESSCO box
22 - Feed wires into outlet box
23 - Mechanically mount outlet to framing. Fasteners should go through the TESCON VANA's adhesive
24 - Mechanically mount outlet to framing. Fasteners should go through the TESCON VANA's adhesive
25 - Tape over fasteners (if possible) to ensure best airseal
26 - Tape over fasteners (if possible) to ensure best airseal
27 - Pressure activate TESCON VANA's adhesive with a PRESSFIX tool
28 - Outlet has been installed into the LESSCO box without air leaks
29 - LESSCO airtight utility box installed into Intello as well as a large pipe with Roflex 150 gasket installed to airseal around the pipe penetration

Take-Offs And Planning For Penetrations

It’s best for those in charge of planning for airtightness details to review construction documents and make a list of all known penetrations and the number of wires, pipes and those pipe's diameters. Once you have a list, get in touch your your local 475 Rep to plan for your gasket and airsealing order.

A growing number of projects, especially those shooting for higher airtightness, or that have greater complexity such as multifamily and commercial projects, have an “Air Boss” on their job sites. Airtightness is a team sport, and in that sport, the Air Boss is the coach. All air barrier penetrations or damage needs to be reported to the Air Boss.
