THERMAL-GRIP® INSULATION FASTENING TOOL
Must be purchased with ROCKWOOL Smartrock insulation. Request a Smartrock quote to order:
Regular price
$643.50
| THERMAL-GRIP PIN SELECTION GUIDE | ||
|---|---|---|
| Anchor Length | Insulation Thickness | Package Quantity |
| 2″ | 2″ | 500 |
| 2-1/2″ | 2-1/2″ | 500 |
| 3″ | 3″ | 500 |
| 4″ | 3-1/2″ - 4″ | 500 |
| 5″ | 4-1/2″ - 5″ | 250 |
Applications

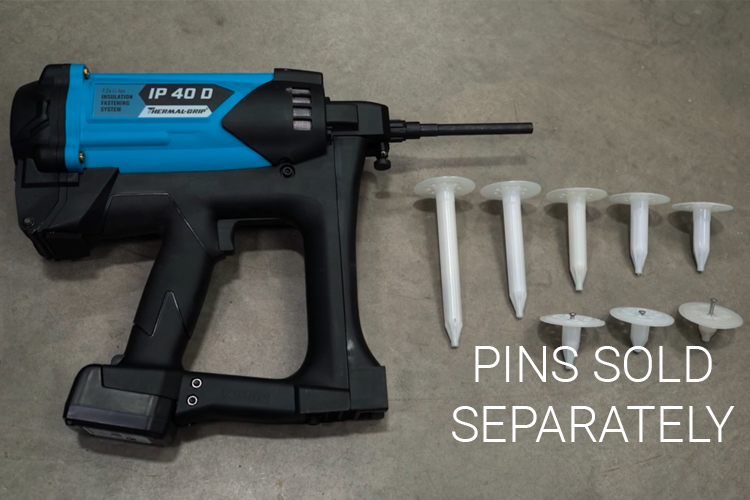

Thermal-Grip® IP40D and IP50D Concrete Pinners are designed to attach insulation to a concrete or masonry substrate. Use them to install Thermal-Grip® Insulation Pins. The IP40D is for low-mid range PSI masonry for use with up to 4" fasteners, and should be used when attaching insulation over CMU block. The IP50D is for mid-high range PSI masonry up to 6" fasteners.
Advantages
- Designed to attach Smartrock® insulation to masonry substrates
- No pre-drilling necessary, just point and shoot
- Rapidly attaches rigid insulation to concrete, masonry, and tilt up / precast walls
- Anchor lengths available from 2" to 5"
- Comes with plastic blow-molded case, two Li-ion batteries, battery charger, and tool lubricating oil
In English:
En Español :
The following products are needed to complete the ROCKWOOL Smartrock system:
- TESCON VANA – Smartrock Board Seam Tape
- TESCON VANA 100 – TRUFAST Anchor Head Sealing Tape
- CONTEGA SOLIDO IQ – Detailing Tape (Masonry, Edges, Beam Penetrations, Windows, etc.)
- VISCONN – Masonry Airsealing Liquid
- Roflex Gaskets – Pipe / Wire Penetration Gaskets (various sizes available)
- Plasti-Grip® PMF Anchor – Plastic Masonry Fastener for Smartrock
Determining order quantities for tape and anchors:
| ALL QUANTITIES APPROX. MINIMUM PER PALLET OF SMARTROCK INSULATION | ||||
|---|---|---|---|---|
| ROCKWOOL Smartrock Insulation | Rolls of TESCON VANA for sealing board seams |
Plasti-Grip® PMF Anchor Packages | Rolls of TESCON VANA 100 for sealing anchor heads |
|
| Board Thickness | Qty | Qty | Length | Qty |
| 2" | 6 | 1.2 | 3-1/2" | 1.0 |
| 2-1/2" | 4.5 | 0.8 | 4-1/2" | 0.7 |
| 3" | 3.5 | 0.7 | 4-1/2" | 0.6 |
| 3-1/2" | 3 | 0.8 | 5-3/8" | 0.5 |
| 4" | 3 | 0.8 | 5-3/8" | 0.5 |
| 4-1/2" | 2.75 | 0.6 | 6-1/4" | 0.4 |
| 5" | 2.5 | 0.6 | 6-1/4" | 0.4 |
