Applications

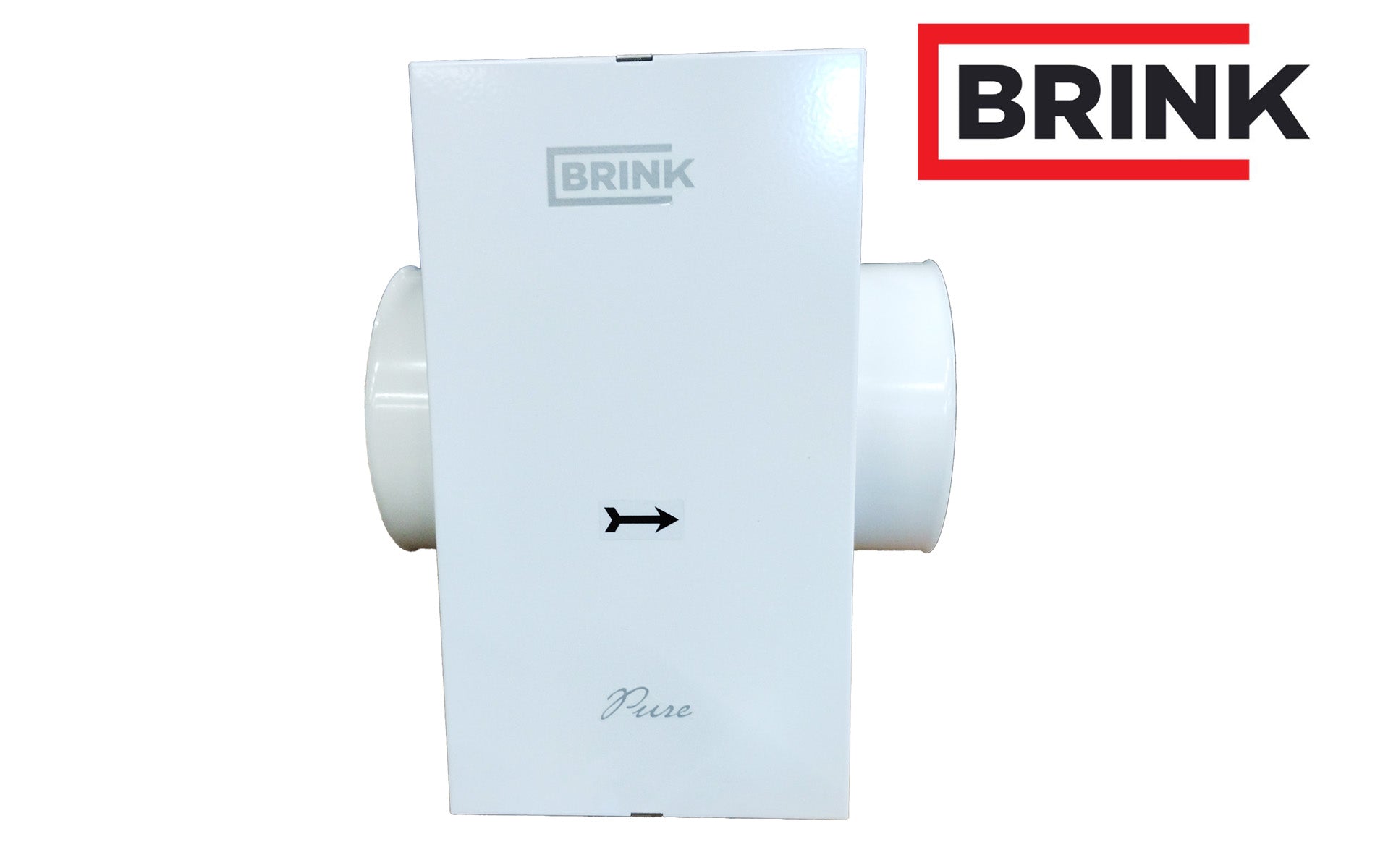

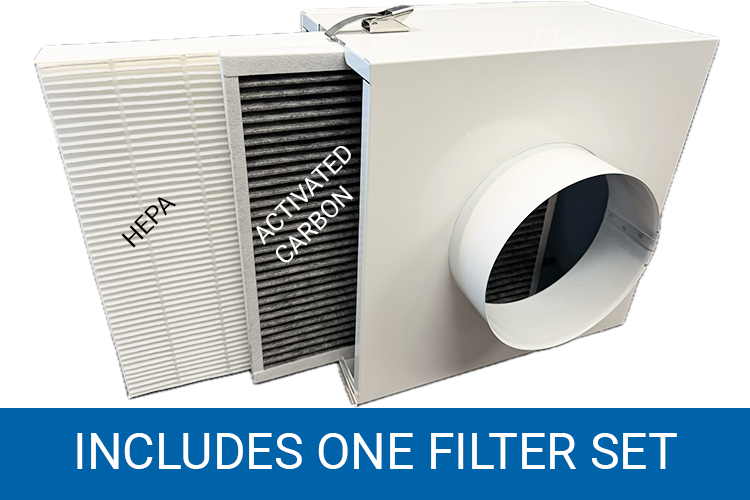

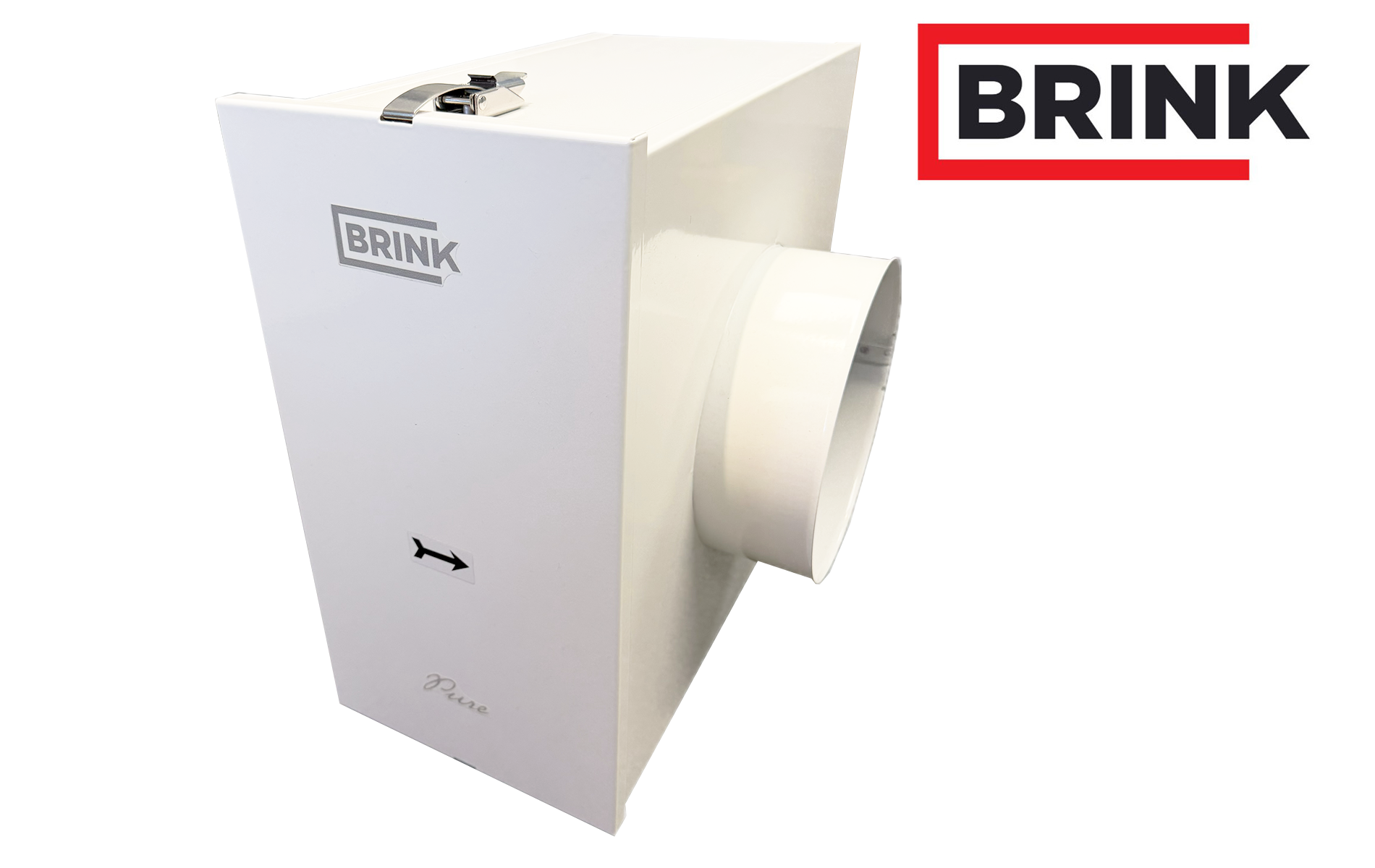

The Brink PURE post filterbox is a HEPA + activated carbon filtration component that can be paired with a Brink FLAIR HRV / ERV for additional filtration. This dual-stage filtration provides premium HEPA filter plus activated carbon filter removes fine particles, dust, pollen, mold spores, combustion particles, odors, and harmful gases from supply air.

Advantages

• Ideal for wildfire smoke and poor outdoor air quality conditions.
• Helps those with sensitivities like asthma breathe cleaner indoor air.
• Odor and gas control via activated carbon absorption, not just particulates.
• Flexible installation: mounts in any orientation (vertical or horizontal).
• Simple integration into existing HRV/ERV ductwork.

Properties

• Material: Powder-coated galvanized steel. Doors seal with padded foam.
• Duct connection: Ø 7” (180 mm)
• De-rating of FLAIR units with the PURE:
  • FLAIR 225: 106 CFM (180 m3/hr)
  • FLAIR 325: 153 CFM (260 m3/hr)
  • FLAIR 400: 188 CFM (320 m3/hr)
  • FLAIR 600: 283 CFM (480 m3/hr)
• HEPA filter type: HEPA H10 (Norm EN1822), ≥ 85% (MPPS), ≥ 99.94% 0.3-7.0 µm German filtration material - hygienic (VDI 6022) and PFAS-free for cleaner and safer air
  • Media area:
  • HEPA filter media area:
  • Number of pleats:
  • Differential pressure:
• Activated carbon filter type:
  • Class EN779 F7/Activated Carbon
  • Class ISO16890 ePM2.6 60%
