Smartrock®
ROCKWOOL insulation with integrated INTELLO PLUS® smart vapor retarder.
Request a quote for availabliity and pricing including shipping [currently ships from our NJ warehouse]:
| SMARTROCK - DELIVERY IN PALLET QUANTITY ONLY | ||
|---|---|---|
| Board Thickness (R-Value) | Coverage Per Pallet | Price Per Pallet |
| 2” (R-8.4) | 768 ft2 | Contact for quote |
| 2.5” (R-10.5) [IN-STOCK] | 560 ft2 | $2,181.78 |
| 3” (R-12.6) | 480 ft2 | Contact for quote |
| 3.5” (R-14.7) | 400 ft2 | Contact for quote |
| 4” (R-16.8) [IN-STOCK] | 400 ft2 | $2,131.38 |
| 4.5” (R-18.9) | 336 ft2 | Contact for quote |
| 5” (R-21) | 320 ft2 | Contact for quote |
Applications

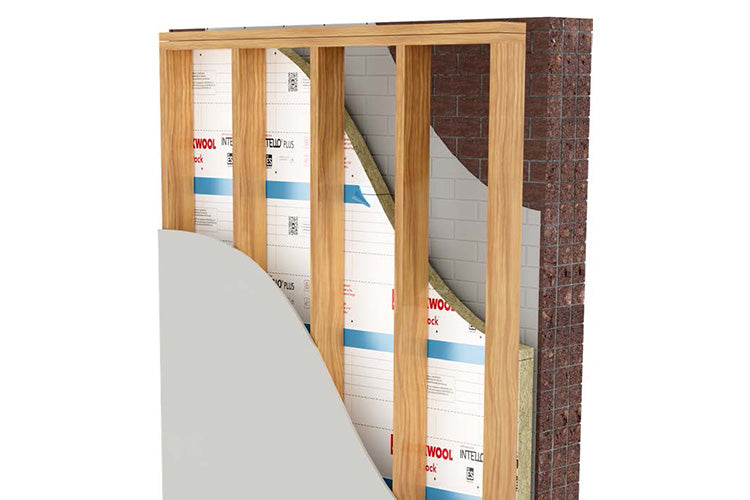

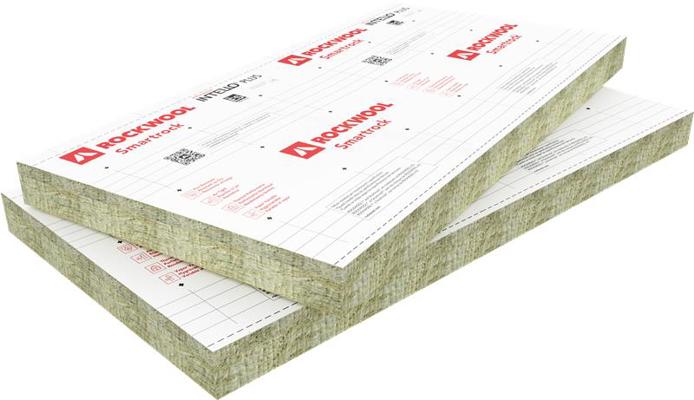

ROCKWOOL Smartrock® is a stone wool insulation board designed for use as continuous insulation on the interior of concrete and masonry walls. Integrated on the board is INTELLO PLUS, the best-in-class smart vapor retarder from Pro Clima. This allows Smartrock to protect assemblies against changing moisture and humidity conditions, while ensuring long-term thermal performance and airtightness.
Advantages
- Complete air, vapor, and thermal control, an all-in-one solution when used with TESCON VANA to seal joints, fasteners and other penetrations
- Fast application, directly to masonry avoids the need for studs and prevents thermal bridges
- Integrated humidity dependent vapor retarder protects historic walls
- Noncombustible Class A fire rated insulation in accordance with IBC Section 703.3.1
- Reliable airtight layer for optimized energy efficiency
- Thicknesses in stock: 2.5" and 4" (also available from 2” to 5" in 0.5" increments)
- ICC-ES ESR-5374 certified for code approval
- For safe interior insulation of new construction and retrofits
- Ideal for landmarked facades and lot line walls
Properties
- R-Value / inch @ 75 °F: 4.2 hr.ft2.F/Btu
-
Vapor permeance: 0.09 to 6 US perms per DIN EN ISO 12572
- ASTM E84 Class A material
R-Value:
4.2 per inch (ASTM C518)
Board Thickness:
Stocked in 2 1/2" and 4" (also available from 2” to 5" in 0.5" increments)
Board Dimensions:
24” x 48” (all thicknesses)
Coverage:
8 ft2 coverage per board (all thicknesses)
• 768 ft2 coverage per pallet of 2" thickness [96 boards]
• 560 ft2 coverage per pallet of 2.5" thickness [70 boards]
• 480 ft2 coverage per pallet of 3" thickness [60 boards]
• 400 ft2 coverage per pallet of 3.5" thickness [50 boards]
• 400 ft2 coverage per pallet of 4" thickness [50 boards]
• 336 ft2 coverage per pallet of 4.5" thickness [42 boards]
• 320 ft2 coverage per pallet of 5" thickness [40 boards]
4.2 per inch (ASTM C518)
Board Thickness:
Stocked in 2 1/2" and 4" (also available from 2” to 5" in 0.5" increments)
Board Dimensions:
24” x 48” (all thicknesses)
Coverage:
8 ft2 coverage per board (all thicknesses)
• 768 ft2 coverage per pallet of 2" thickness [96 boards]
• 560 ft2 coverage per pallet of 2.5" thickness [70 boards]
• 480 ft2 coverage per pallet of 3" thickness [60 boards]
• 400 ft2 coverage per pallet of 3.5" thickness [50 boards]
• 400 ft2 coverage per pallet of 4" thickness [50 boards]
• 336 ft2 coverage per pallet of 4.5" thickness [42 boards]
• 320 ft2 coverage per pallet of 5" thickness [40 boards]
In English:
En Español :
The following products are needed to complete the ROCKWOOL Smartrock system:
- TESCON VANA – Smartrock Board Seam Tape
- TESCON VANA 100 – TRUFAST Anchor Head Sealing Tape
- CONTEGA SOLIDO IQ – Detailing Tape (Masonry, Edges, Beam Penetrations, Windows, etc.)
- VISCONN – Masonry Airsealing Liquid
- Roflex Gaskets – Pipe / Wire Penetration Gaskets (various sizes available)
- Plasti-Grip® PMF Anchor – Plastic Masonry Fastener for Smartrock
Determining order quantities for tape and anchors:
| ALL QUANTITIES APPROX. MINIMUM PER PALLET OF SMARTROCK INSULATION | ||||
|---|---|---|---|---|
| ROCKWOOL Smartrock Insulation | Rolls of TESCON VANA for sealing board seams |
Plasti-Grip® PMF Anchor Packages | Rolls of TESCON VANA 100 for sealing anchor heads |
|
| Board Thickness | Qty | Qty | Length | Qty |
| 2" | 6 | 1.2 | 3-1/2" | 1.0 |
| 2-1/2" | 4.5 | 0.8 | 4-1/2" | 0.7 |
| 3" | 3.5 | 0.7 | 4-1/2" | 0.6 |
| 3-1/2" | 3 | 0.8 | 5-3/8" | 0.5 |
| 4" | 3 | 0.8 | 5-3/8" | 0.5 |
| 4-1/2" | 2.75 | 0.6 | 6-1/4" | 0.4 |
| 5" | 2.5 | 0.6 | 6-1/4" | 0.4 |
