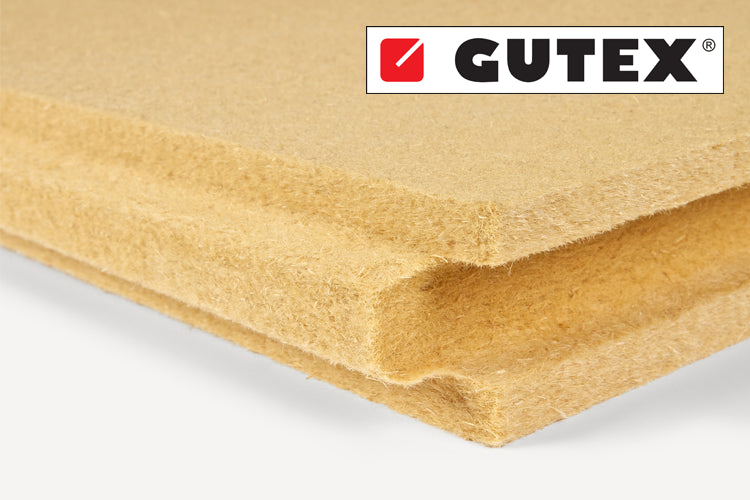

Gutex MULTITHERM (custom order sizes)
Price varies depending on material size, quantity, and shipping requirements.
Request a quote for availability and pricing including shipping:
Applications
Moisture resistant wood fiberboard insulation and weather resistive barrier in one, for exterior walls under rain screens. Can also be used as pitched roof insulation when protected with a Pro Clima membrane.
Advantages
- Raw material for all GUTEX insulation boards comes solely from wood that is harvested and grown using sustainable forestry management practices
- Hydrophobic treatment (1.0% paraffin) allows boards to act as temporary weather and wind protection
- Tongue and groove edges mean that boards edges do not have to line up with rafters in the roof
- Boards are made using the dry process meaning that the boards contain 95% wood, and maximizes the use of this sustainable, recyclable natural resource
- Can be used above sheathing when protected by a ProClima roofing underlayment such as SOLITEX MENTO 3000 Connect or SOLITEX MENTO PLUS
- Can be installed directly over studs and rafters without sheathing when shear / structural is achieved by other means
Properties
- R-value/in: 3.6
- Thermal Conductivity: 0.040 W/mK
- Perm rating:
32 perm/inch
- Composition: 1% paraffin/ 4% polyurethane/ 95% wood
Board Dimensions:
43 5/16” x 23 5/8” (110 cm x 60 cm) - includes 3/4” (2 cm) T&G
Net Coverage Per Board:
6.75 ft2 coverage per board
[421/2” x 227/8” (108 cm x 58 cm)]
Available sizes: Request a quote for shipping information and lead time
43 5/16” x 23 5/8” (110 cm x 60 cm) - includes 3/4” (2 cm) T&G
Net Coverage Per Board:
6.75 ft2 coverage per board
[421/2” x 227/8” (108 cm x 58 cm)]
Available sizes: Request a quote for shipping information and lead time
| NAME | THICKNESS | R VALUE |
|---|---|---|
| Multitherm 40 | 19/16" | 5.7 |
| Multitherm 60 | 23/8" | 8.5 |
| Multitherm 80 | 3 1/8" | 11.4 |
| Multitherm 100 | 3 15/16" | 14.2 |
| Multitherm 120 | 4 3/4" | 17.0 |
| Multitherm 140 | 5 1/2" | 19.9 |
| Multitherm 160 | 6 5/16" | 22.7 |
| Multitherm 180 | 7 1/16" | 25.6 |
| Multitherm 200 | 7 7/8" | 28.4 |
