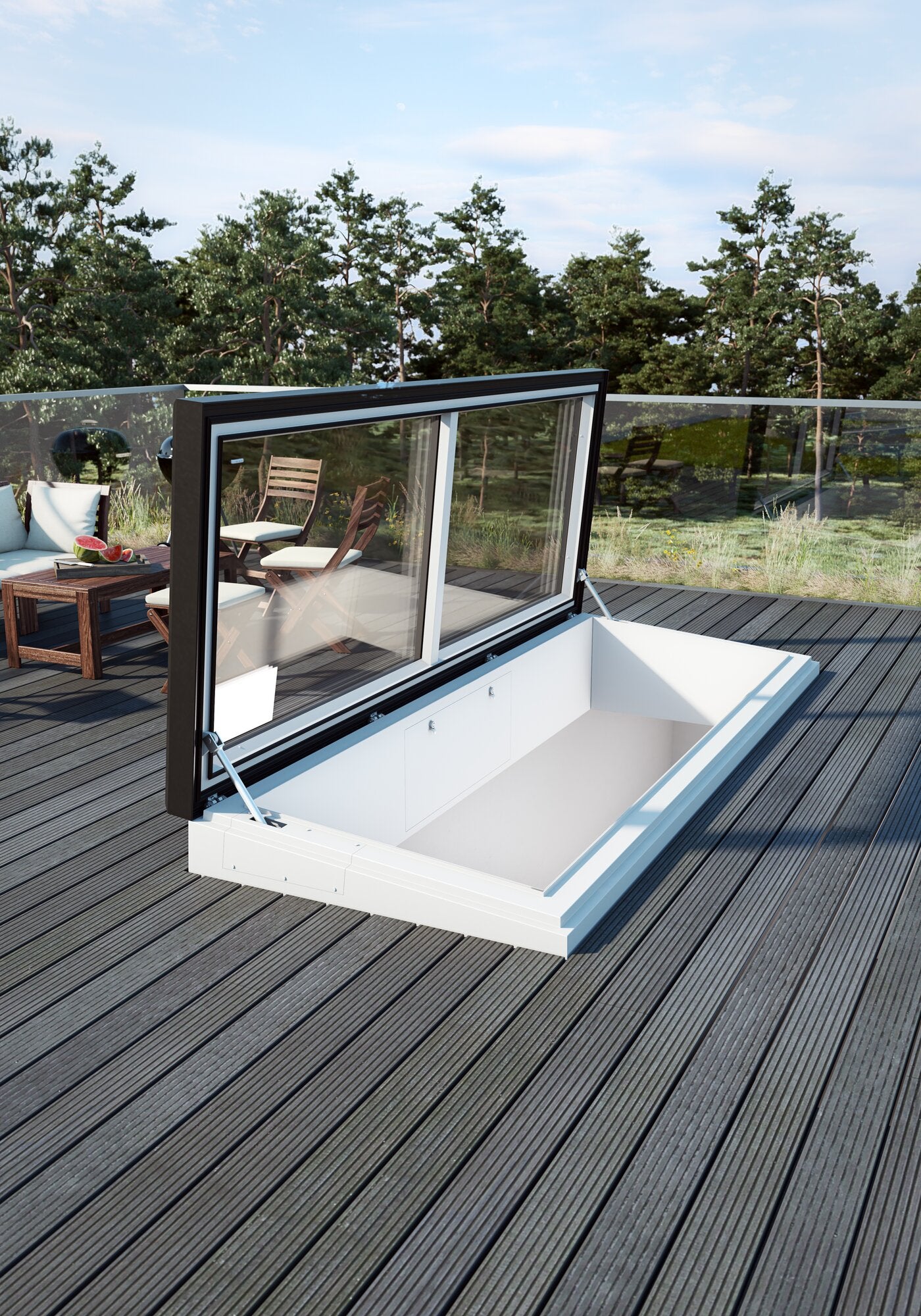

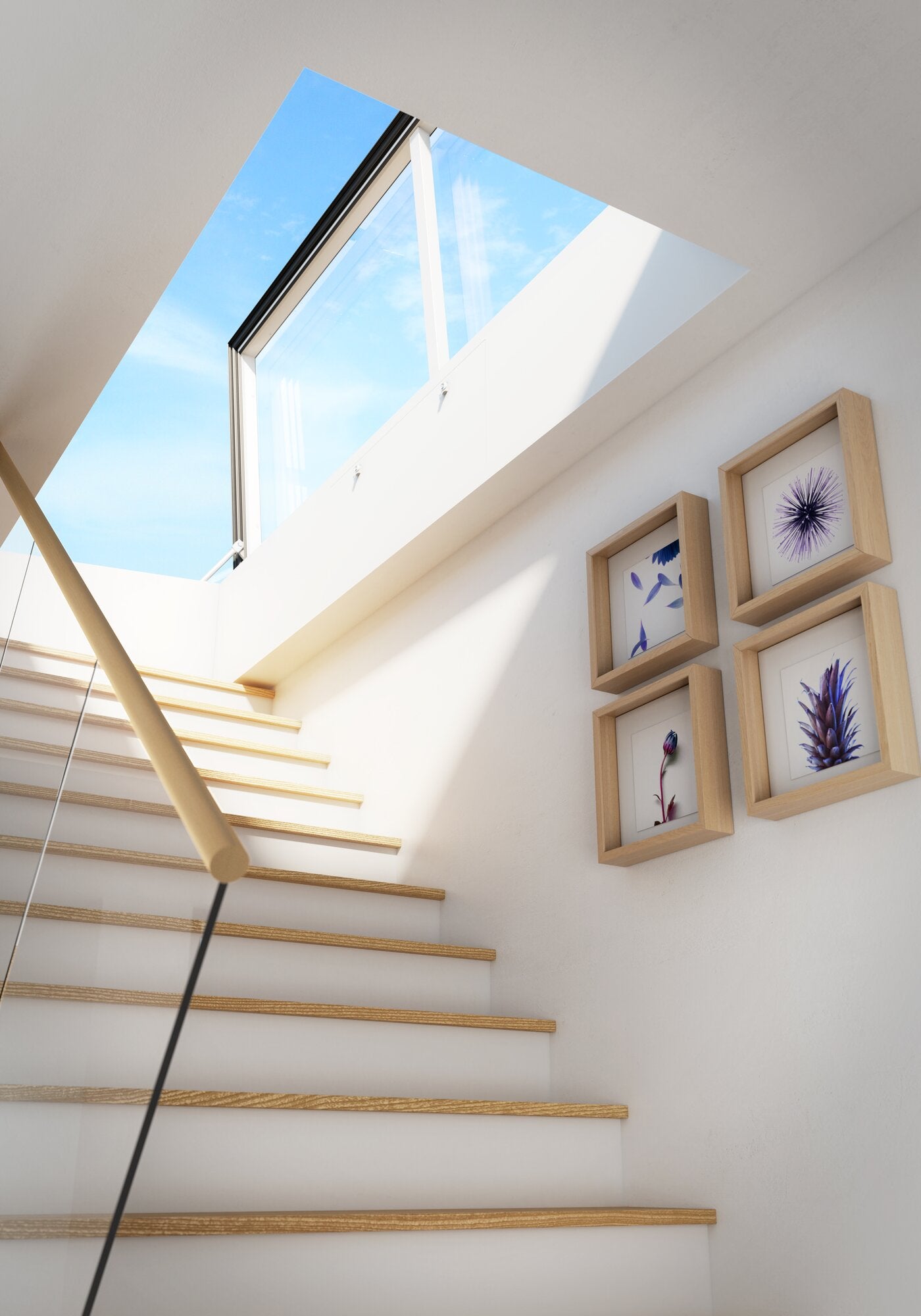

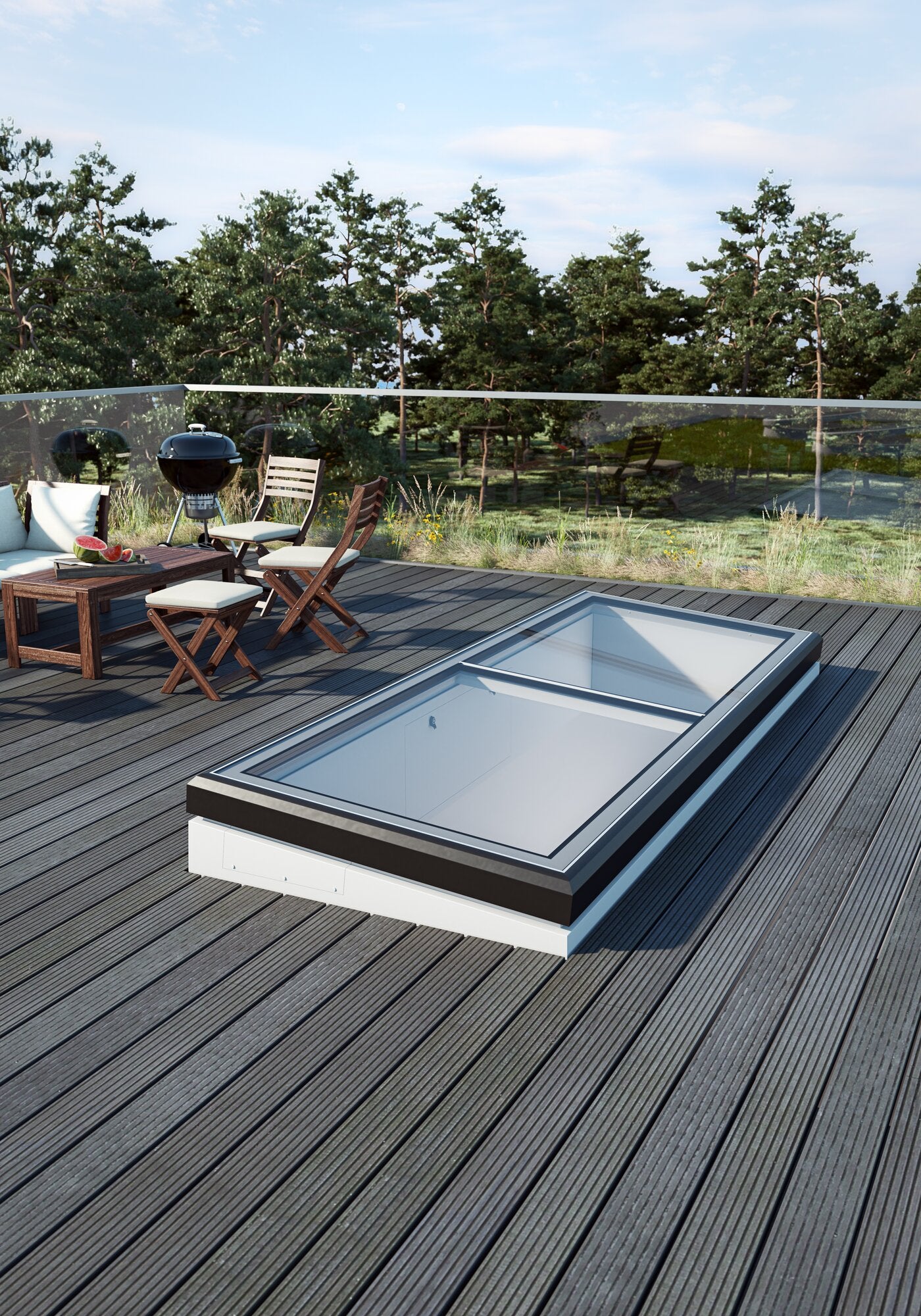

The Lamilux Comfort Swing is a motorized roof exit hatch with an operable sash that opens outward via a hinged edge and two motorized pistons. Ideally suited for stairway access to roofs. This roof access skylight has a thermally continuous assembly with insulated glazing and a continuously insulated frame, which is prefabricated on an insulated curb with an integrated 5° slope.

Specifications:

• Preassembled for plug and play installation: skylight, motor opener, and upstand
• Space-saving swing opening requires minimal footprint
• Motorized operation with visual sensor to trigger emergency stop
• Operable from the exterior via an added control
• Insulated fiberglass curb makes thermal bridge free installation simple, fast and reliable, minimizing heat loss
• Thermo active design engineered solution from Germany to raise surface temperature and prevent condensation on interior of unit
• RAL powder coating of skylight frames in color of your choice

Glazing Details:

• Glass: tempered exterior, laminated safety glass interior
• Self-cleaning thanks to sloped glazing at 5°

• Uglass: 0.105 BTU/hr.ft².°F (0.6 W/m².K) per EN 673

• SHGC: 0.24-0.30

• Visual Transmittance: 0.47-0.55
