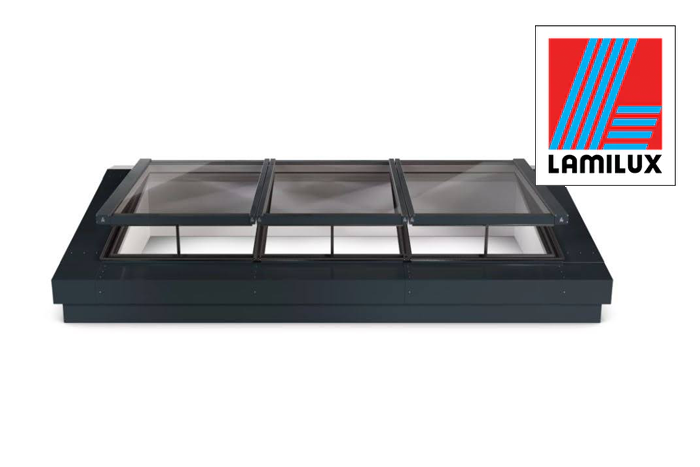

Lamilux MS78 Modular Glass Skylight

From $15,000.00 per unit

Request a quote for availability and pricing for your region.

The Lamilux MS78 high performance is a modular skylight system that offers exceptional design flexibility. The modules are available in standardized widths and heights and can be fixed or motorized. Install is aided by the precision-built self-aligning structure that receives and connects each module. The elegant and narrow width of the structural components (3'' / 78mm) maximize daylight incidence and ventilation potential. Durable, high quality sealing and its thermal bridge-free design assure that you will have clear views of the sky, daylight in the spaces below, and energy savings with the MS78 for many years.

With USA-based technical sales support, we can integrate the MS78 in your next project. We offer owners, architects, and engineers detailed production drawings and on-site support from our Authorized Installation Representatives to ensure seamless transition into the roof assembly.

Specifications

  • Thermally broken aluminum frames
  • Fully insulated detailing of alum flashing panels/weathering sheets
  • Triple-pane glass with SHGC from 25-30%. Double-pane upon request.
  • U-glass values 0.105-0.194 Btu/(h⋅ft2⋅°F)
  • ASTM E283/E283M air leakage: passed + CAN A3 / fixed level
  • ASTM E331 static water penetration: 15 psf
  • ASTM E547 cyclic water penetration: 9 psf
  • ASTM E330/E330M structural performance: PG50

Glazing Details

  • Triple-pane as standard, double-pane upon request
  • Ug value: 0.105-0.194 Btu/(h⋅ft2⋅°F)
  • Solar heat gain coefficient: 25-30%
  • Visual transmittance: 33-61%
  • Sound insulation: 38-39 dB, ISO 10140-2

Sealing and Drainage

  • Multi-stage EPDM sealing system
  • Drainage profile is hidden under joint/cap
  • Frames are thermally optimized and employ warm edges to minimize condensation formation
  • Aligned glass surface and frame surfaces on the eave side profile offers optimum water drainage and avoids dirty edges

• Can be installed with an inclination of between 1:12 and 7:12
• Nominal module widths (in.): 26.6, 29.5, 31.5, 35.4, 39.4, 43.3, 47.2
• Nominal module heights (in.): 27.6, 35.4, 43.3, 51.2, 59.1, 66.9, 74.8, 78.7, 82.7, 90.6
• Longest span available: 65’ 8.5’’
• All widths can be combined with all heights
