Lunos e² Kit
Couldn't load pickup availability
| SELECTION GUIDE | |
|---|---|

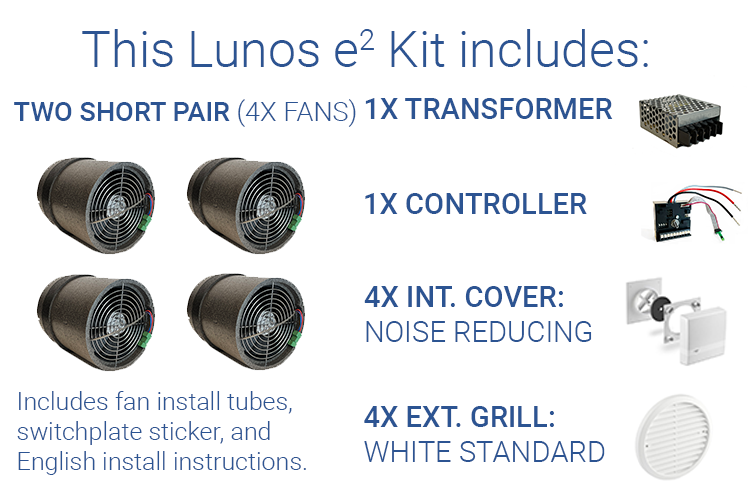

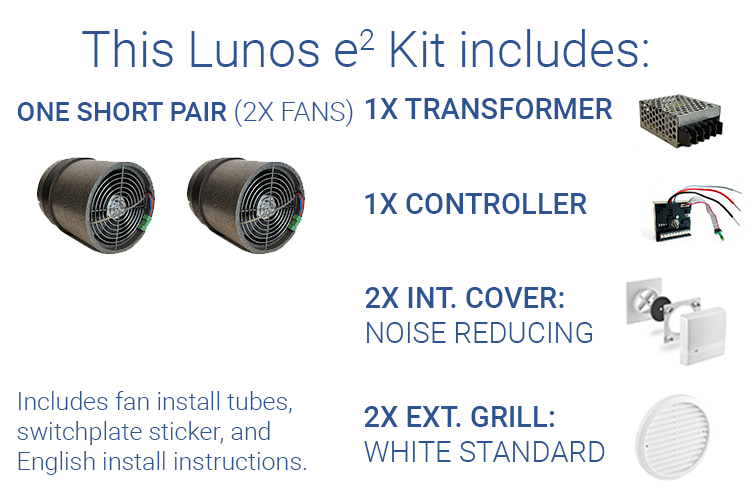

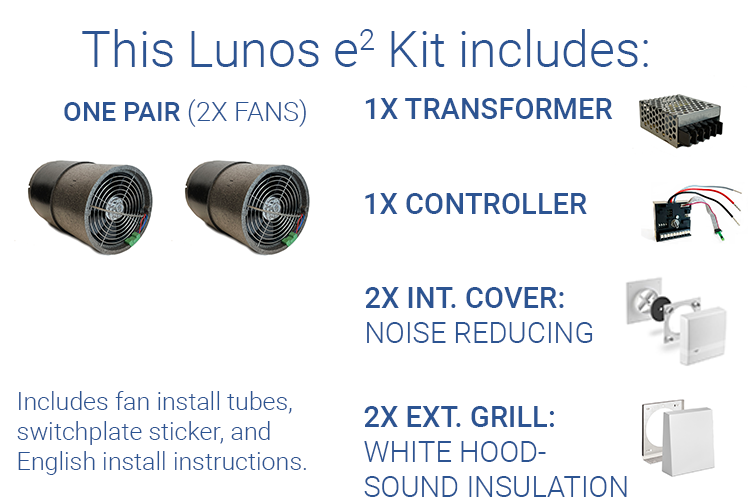

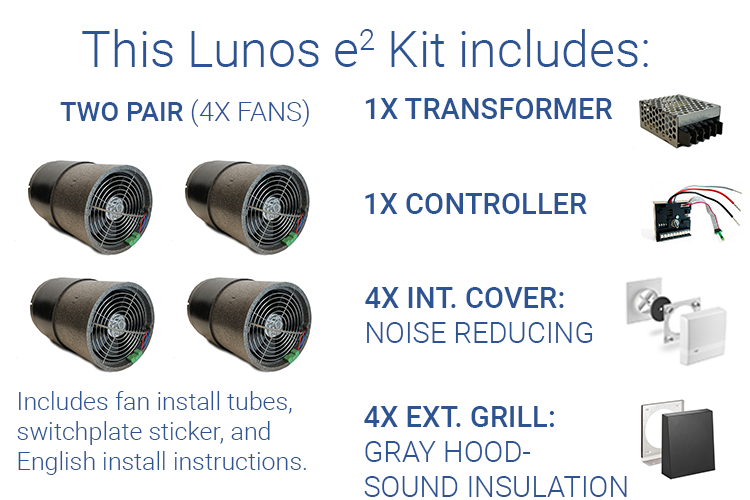

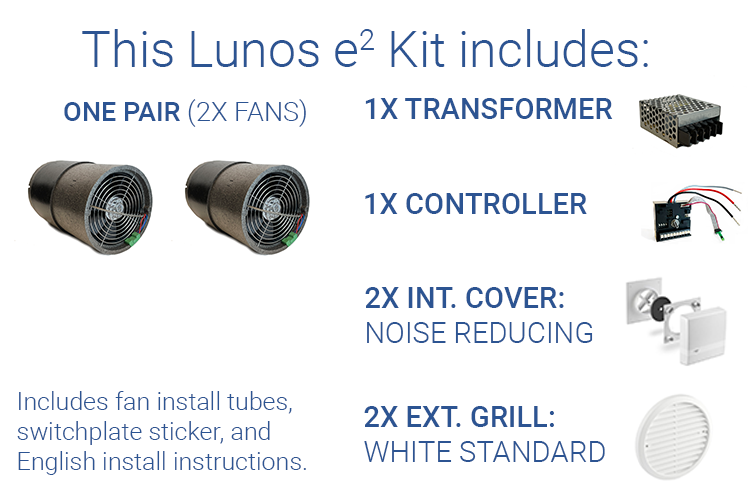

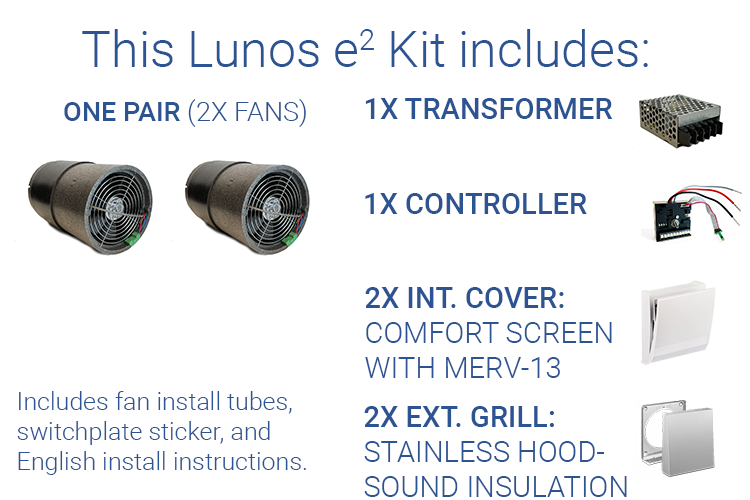

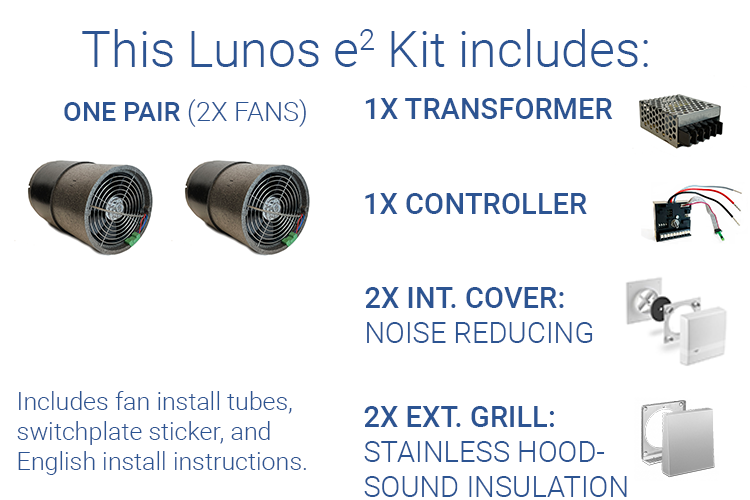

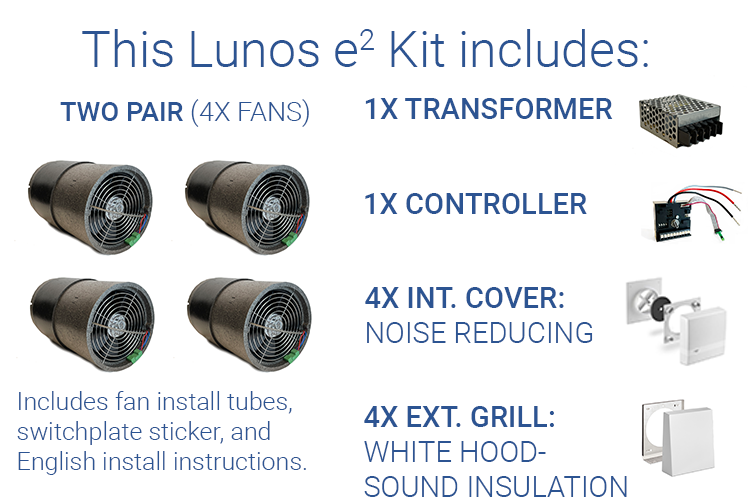

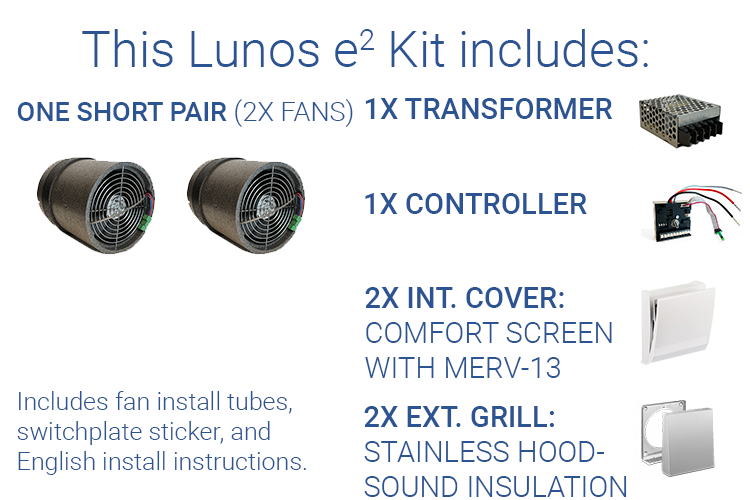

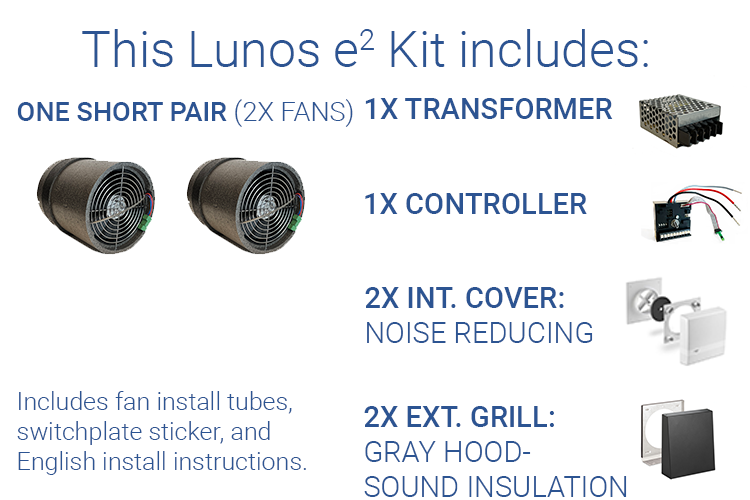

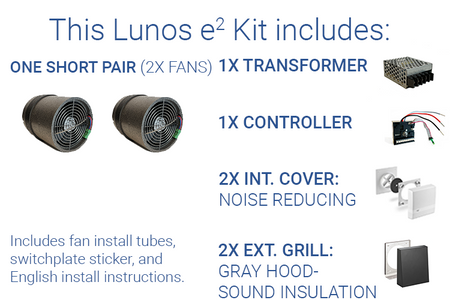

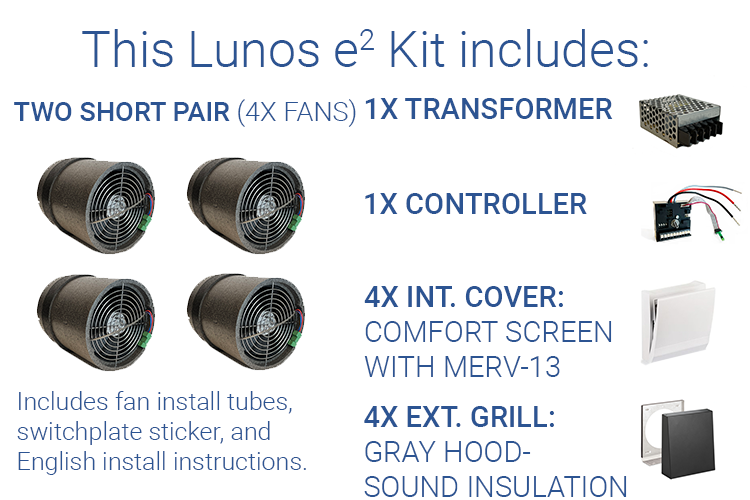

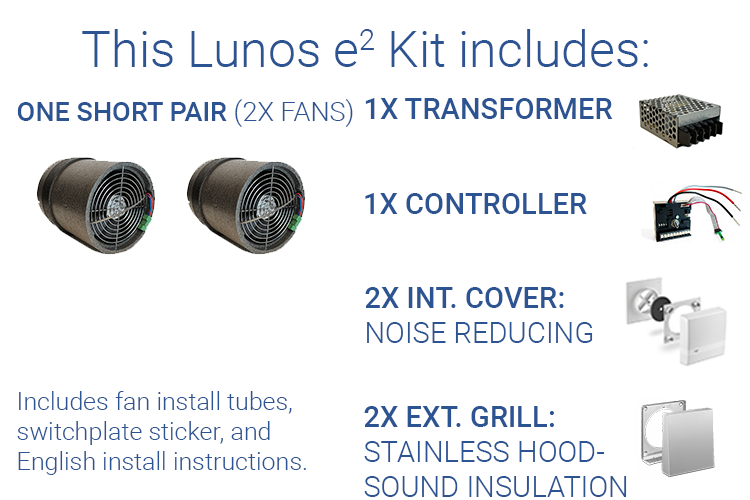

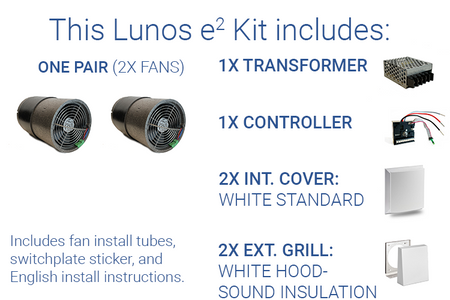

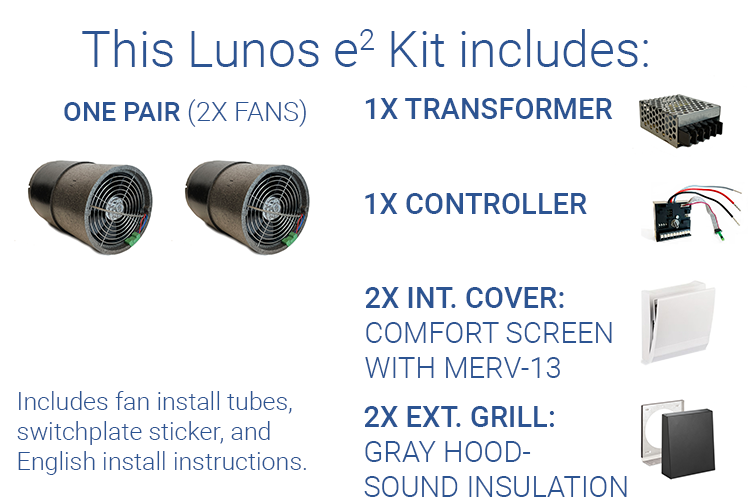

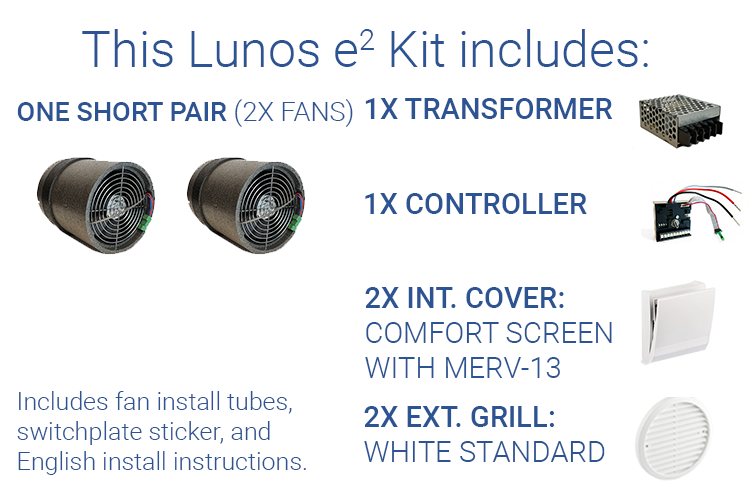

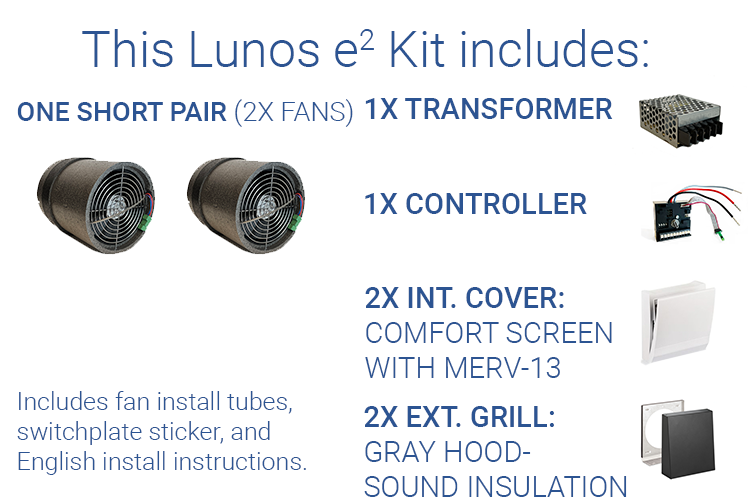

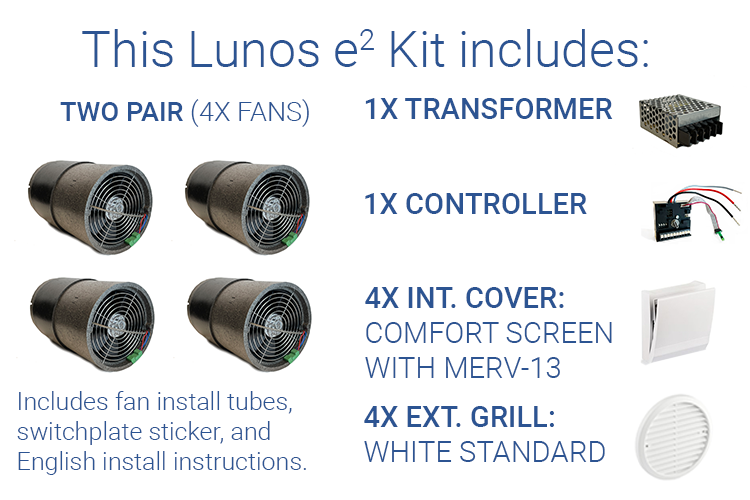

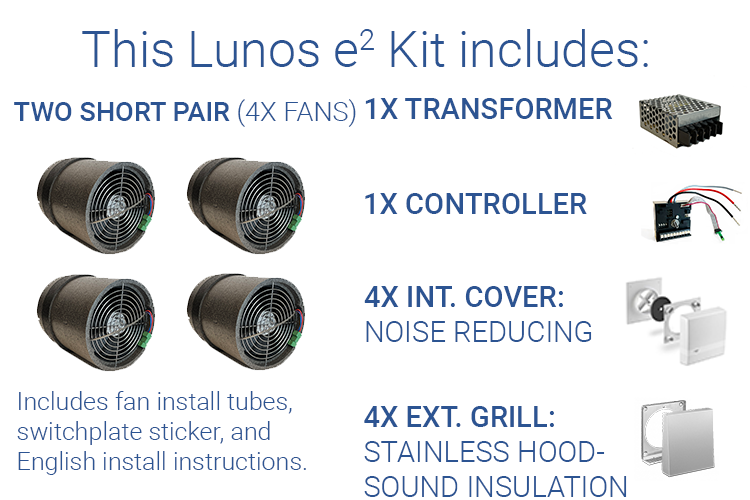

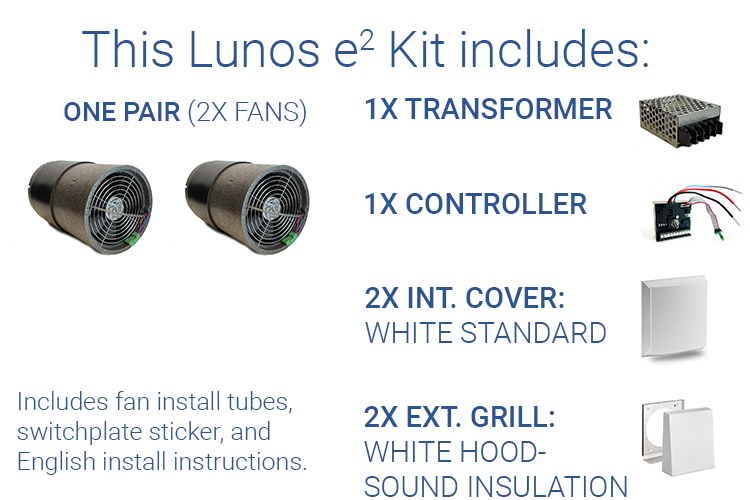

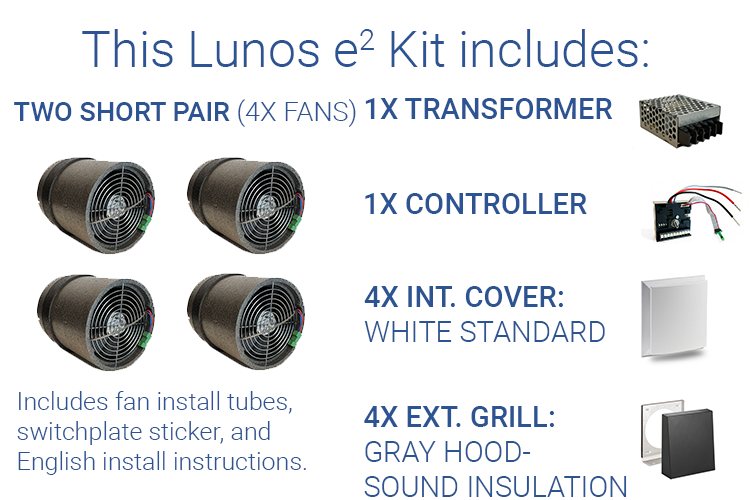

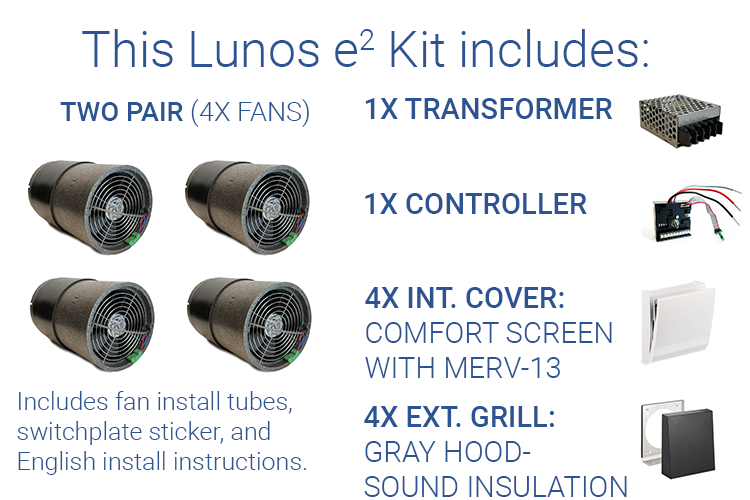

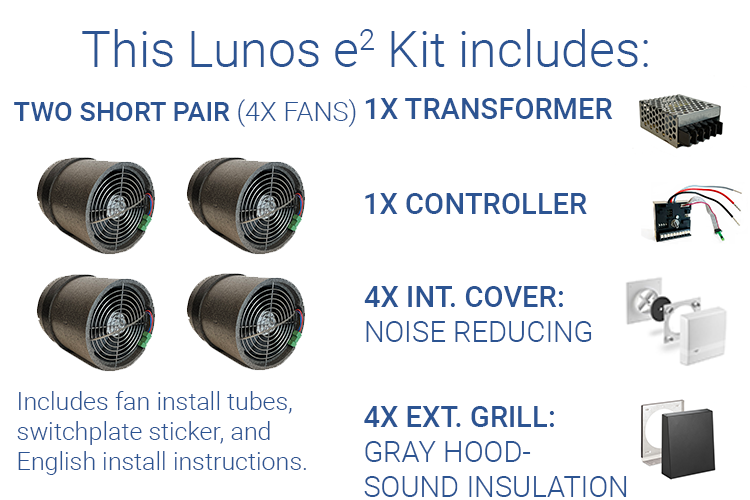

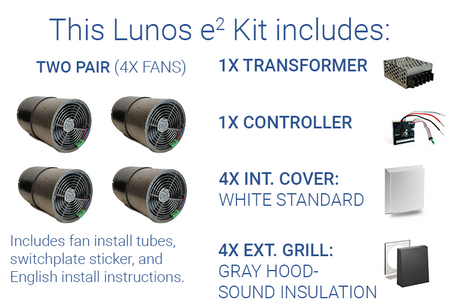

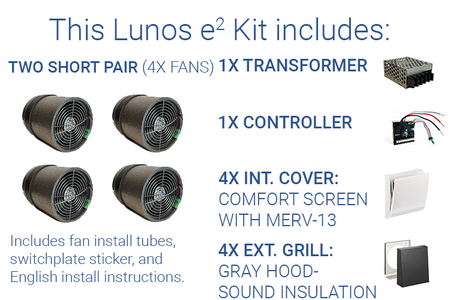

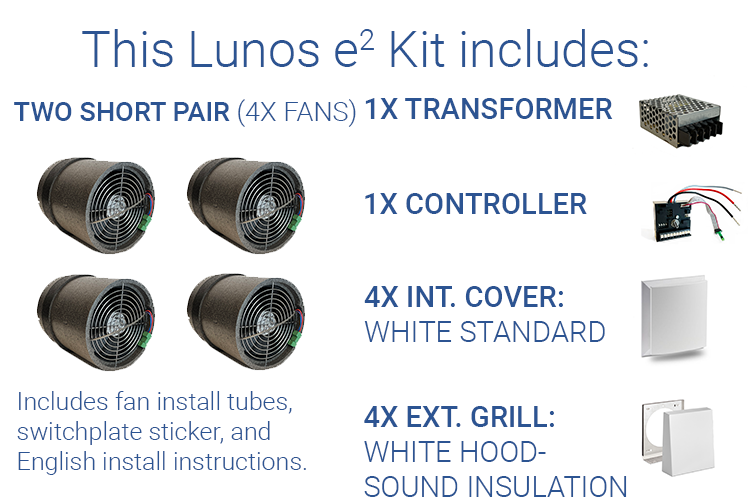

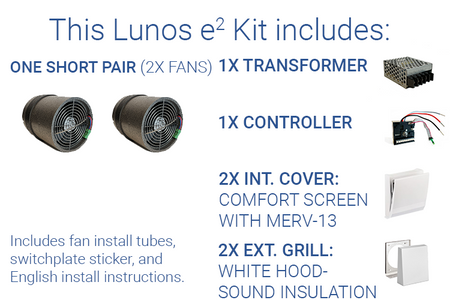

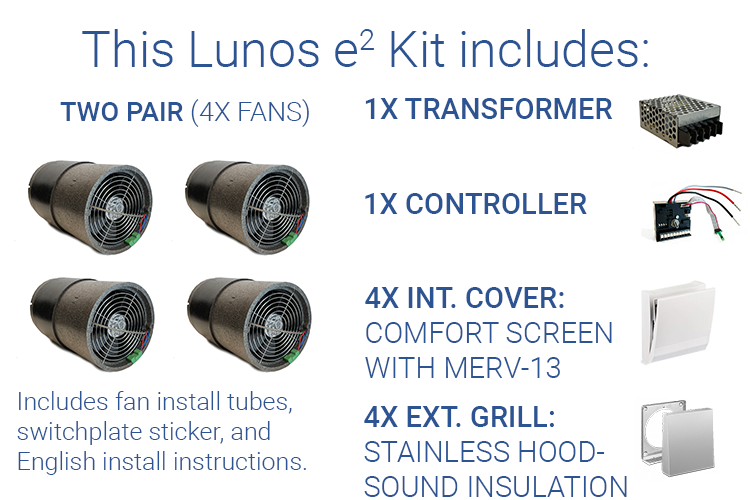

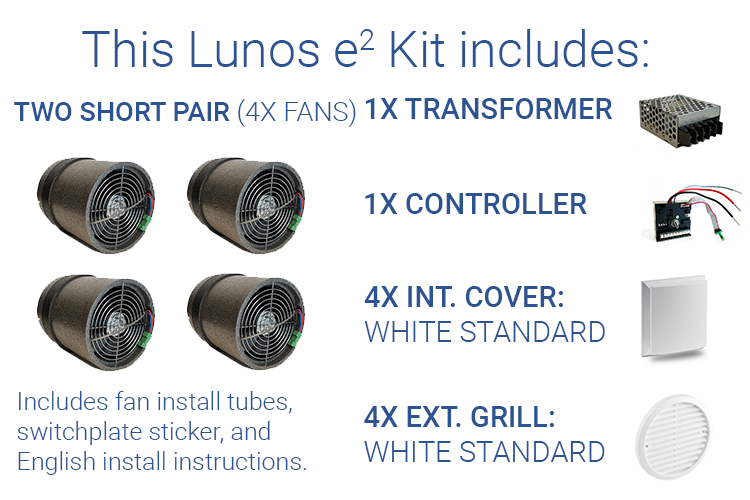

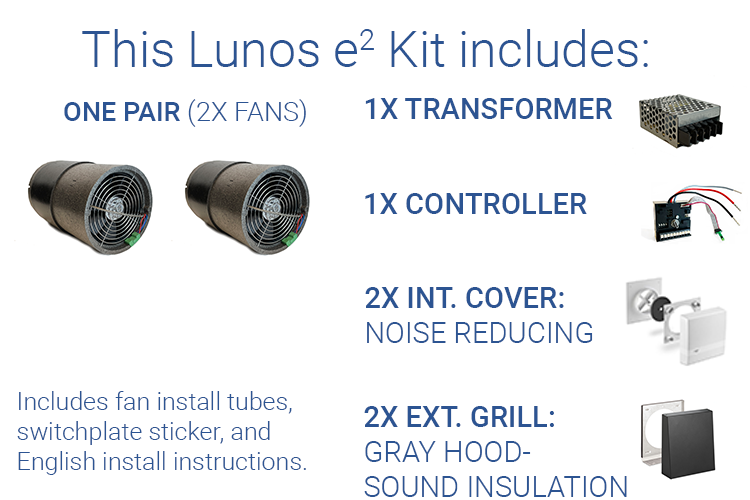

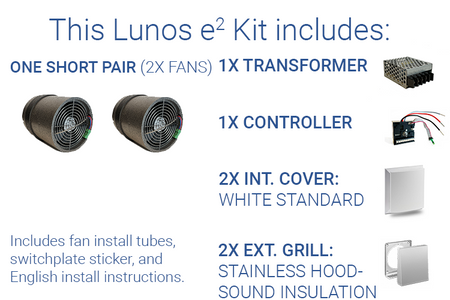

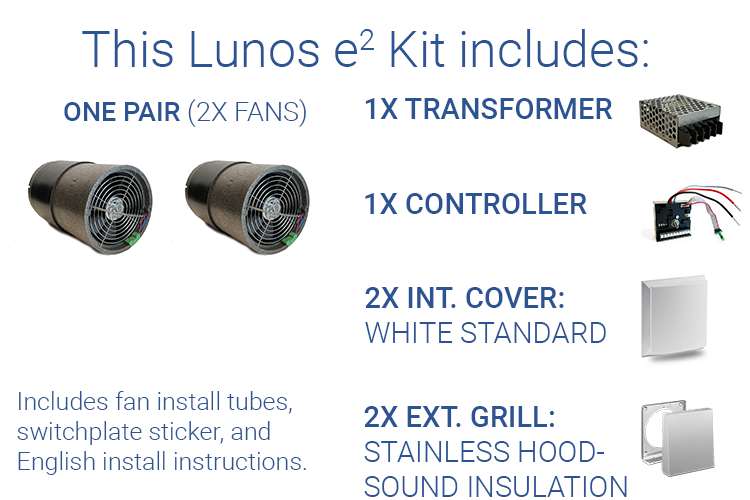

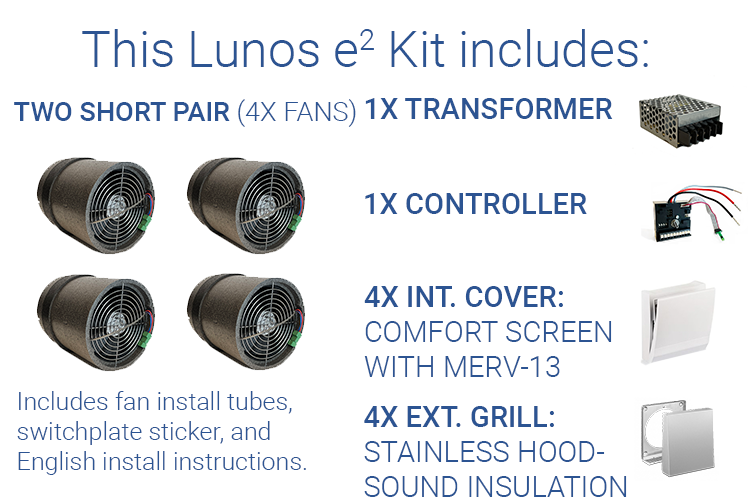

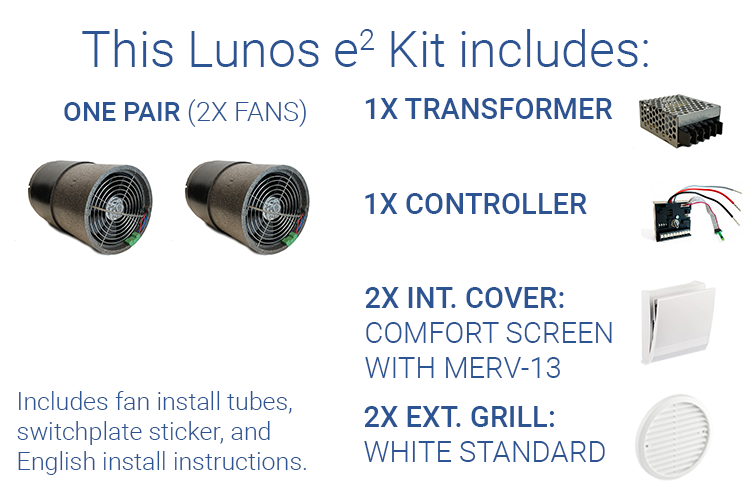

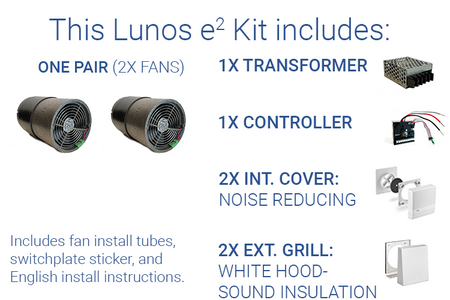

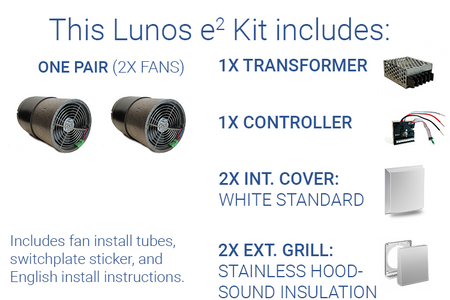

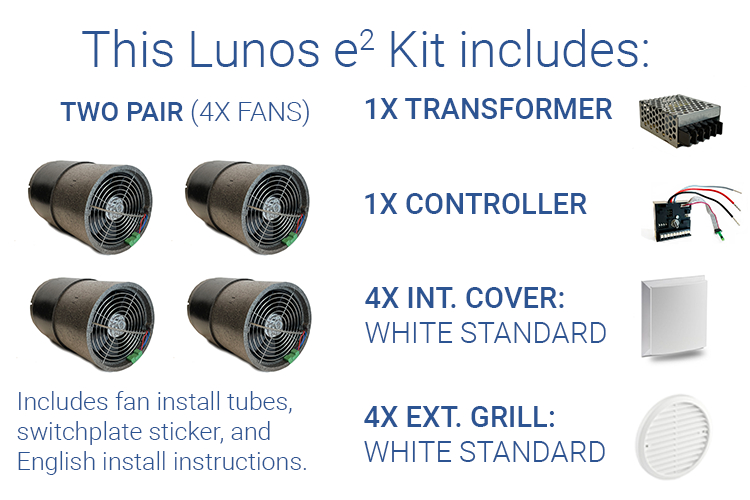

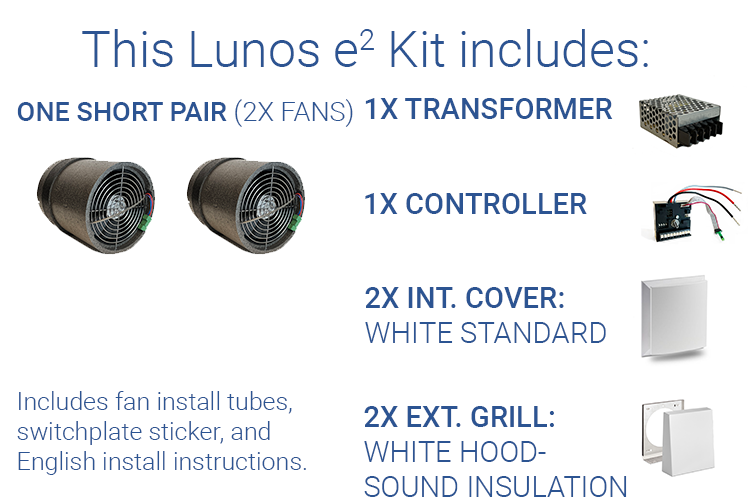

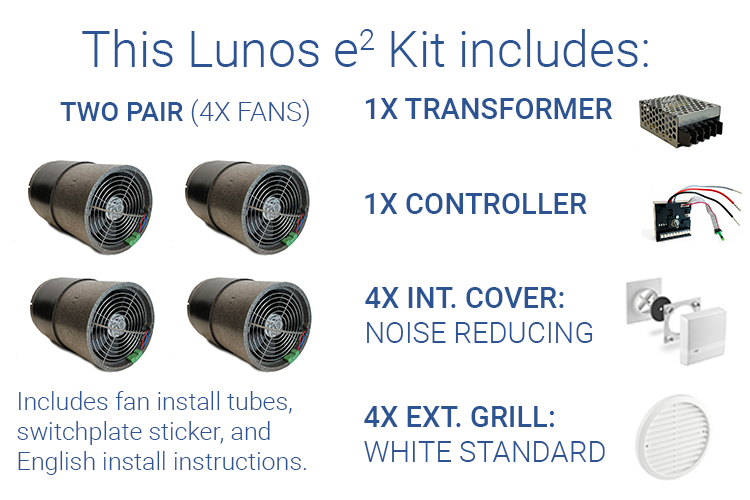

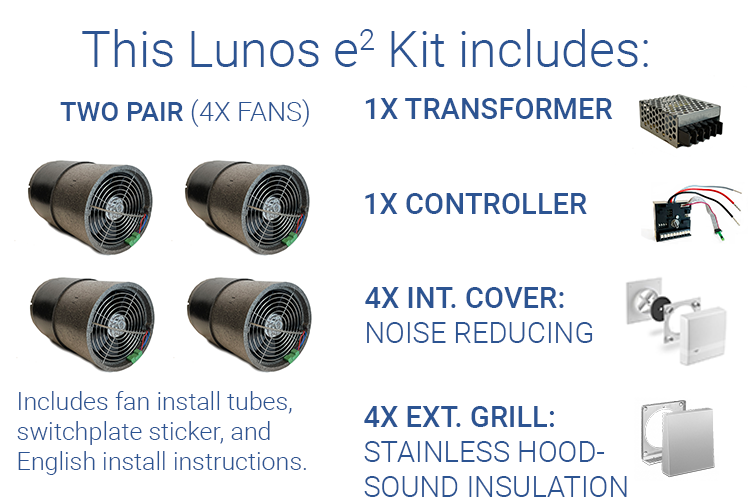

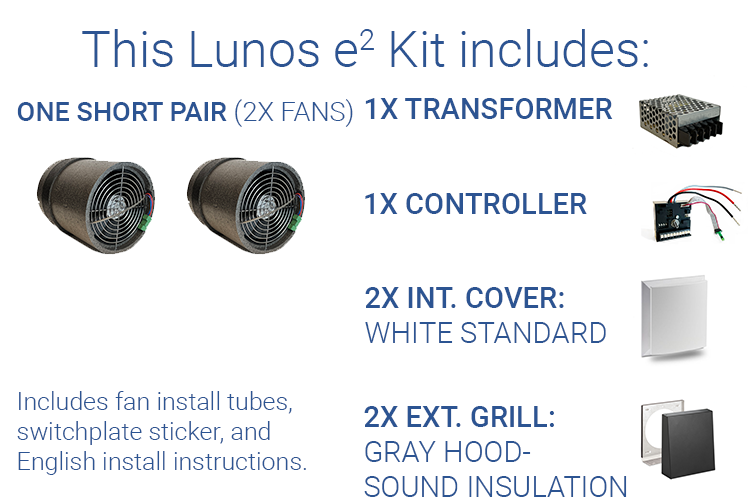

| Kit Contents | Each Lunos Kit comes standard with one transformer and one controller to operate the system -- Switches sold separately |
| Number of Fans | Lunos fans work in pairs with up to 4 fans connected to each controller |
| Standard Int Cover | Comes with MERV 5 filters that are washable and reusable |
| Int Sound Reduction Cover | Reduces sound by 6 decibels, comes with MERV 5 filter |
| Comfort Screen with MERV 13 Filter | MERV 13 reduces PM 2.5 by up to 90%, the dominant size of particulates from wildfire smoke |
| Standard Ext Grill | Angled slats to shed rain, includes a bug screen and drip edge |
| Ext Hood with Sound Absorption | Durable, long-lasting protection, reduces exterior noise by 6 decibels. |
NOTE: You will receive 1 of 2 Lunos universal controllers with your order. It will either have wires that are red, black, and gray OR wires that are orange, purple, and gray. Both color combinations are acknowledged in installation guides and linked documentation.
Applications

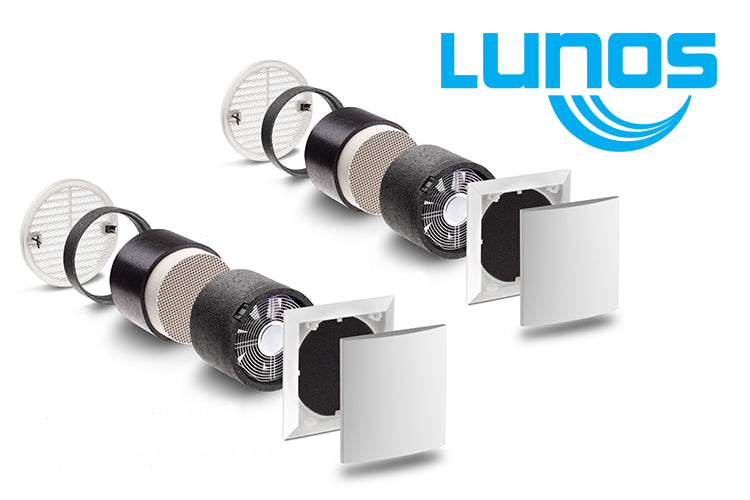

Ductless, simple and highly efficient heat recovery ventilation (HRV) system. Operates in groups of 2 or 4 and are installed directly in the exterior wall. The regenerative core is charged every 60 seconds, after which the fan reverses and the incoming air absorbs the stored heat on its way in.

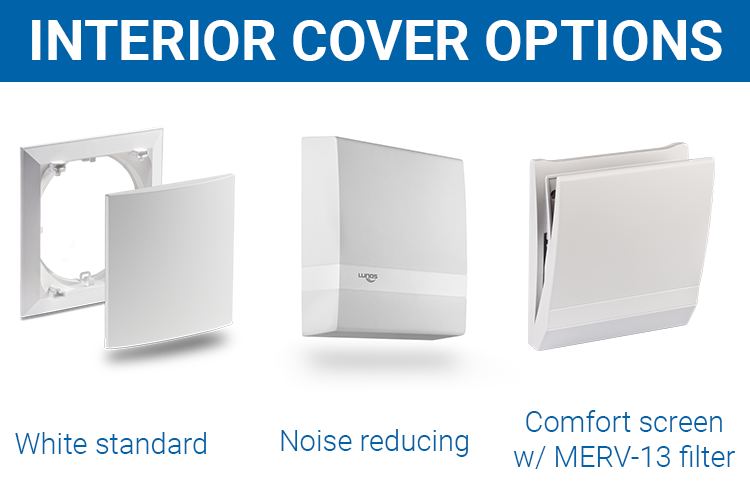

Int / Ext Cover Options
- Standard Int Cover - with MERV 5 filter that is washable and reusable.
- Int Sound Reduction Cover- Reduces sound by 6 decibels, comes with MERV 5 filter.
- Comfort Screen with MERV 13 Filter- MERV 13 reduces PM 2.5 by up to 90%, the dominant size of particulates from wildfire smoke.

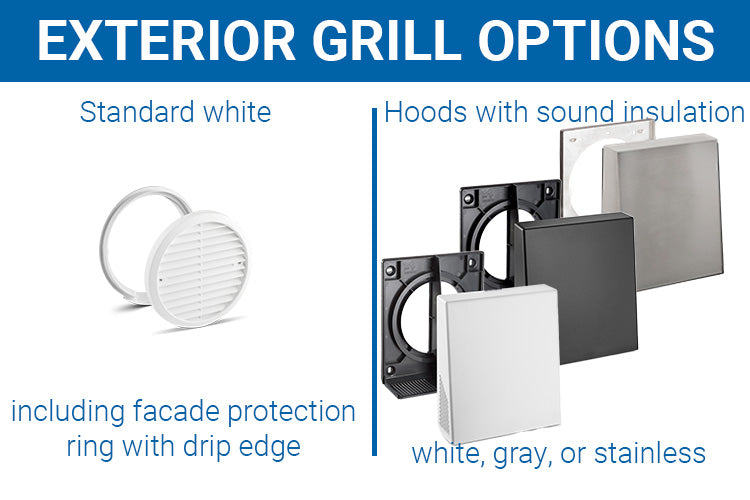

- Standard Ext Grill- Angled slats to shed rain, includes a bug screen and drip edge.
- Ext Hood with Sound Absorption- Durable, long-lasting protection comes in white, gray, and stainless steel options. Reduces exterior noise by 6 decibels.
Advantages
- Continuous and balanced heat recovery ventilation without the need for ducts
- Flow rates of: 10 / 15 / 20 / 22 CFM (depending on controller settings)
- LUNOS e² fans are certified to UL 1815 Nonducted Heat Recovery Ventilators by NRTL: TUV SUD-America
- Sound levels from 29db(A) at 1 meter at 15CFM
- It is a very quiet heat recovery ventilation system with specific fan efficiency that is second to none.
Properties
- Includes one transformer (110V - 12V) and controller. One or two pairs (2 or 4 fans) can be wired to one controller.
- Ventilation system efficiency: 0.15 Wh/m3[0.25W/CFM]
- Heat recovery efficiency: 88% per DIBT/DIN V 4701 at 24 m3/hr (~15 CFM)
- Humidity recovery: 20-30% in winter
- Fan cycle: 60 seconds (standard fan) - 50 seconds (short fan)
- Filter: G3 (MERV 5) comes with standard interior cover. MERV 13 available with Comfort Screen interior cover option.
For Lunos systems purchased BEFORE April 2022 refer to:
Lunos e² Installation Guide for Controller 5/UNI No.39975
How many Lunos do I need?
Lunos e2 operates in pairs, each pair providing up to 22 CFM ventilation. Check out this page to see how you can size your own Lunos system. If you want, we are happy to take a look and support.
I am building a tiny house. Is Lunos the right system for me?
Yes. Lunos is a popular solution for small homes and tiny houses, as it lets you have a balanced supply of fresh air without any ductwork typically associated with a ventilation system. This means you get whole house ventilation just through 2 holes in your wall. The blog posts below delve deeper into the Lunos through-wall HRV system.
How many fans can I connect to a Lunos controller?

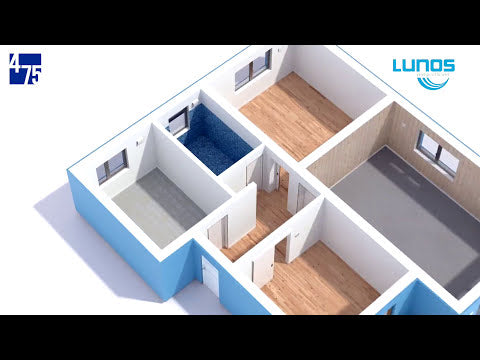

You can connect groups of 2 or 4 Lunos e2 fans to one controller. You can see a video showing installation here. A guide to installing and operating the Lunos system can be found on the product page.
Do I need to buy a controller/transformer/anything else with my Lunos?
A Lunos e2 box, in addition to the fan unit, comes with a transformer and a universal controller. You will need to get rocker switches, switch plate, electrical box and low voltage wire.
Can I get Lunos in Canada?
No. We are sorry, but 475 is exclusive distributors for Lunos only in the USA. We cannot sell or distribute any Lunos products to Canadian customers.
Can I install the Lunos through my roof?
No, you cannot install fans in your roof/ceiling. Lunos units can only be installed through the wall assembly horizontally.
How long is the Lunos system? Will it work with my wall thickness?
The minimum wall thickness for the Lunos e2 standard version is 12” or 300 mm and for the Lunos e2 short version is 7.5”. The tube you will receive with your order is 20” long and you can cut it to the size you require. If the wall thickness is less than minimum tube length, you can keep the extra length to the inside of the building envelope and box out your wall inward.
NOTE: 475 cannot ship Lunos products to Canada. Canadian customers, please contact lunoscanada.com for assistance.
